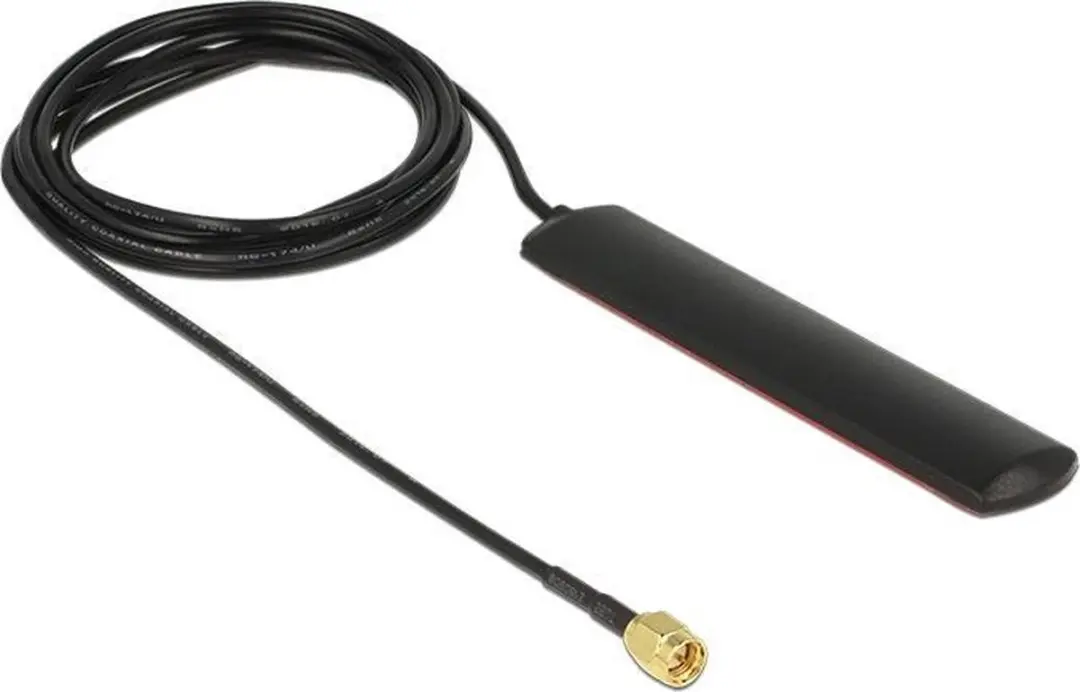

Description This antenna by Delock can be used indoors and takes advantage of different frequency bands. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.
Specification • Connector: 1 x SMA plug
• LTE band: 1-6; 8-10; 19; 25; 33-37; 39
• Frequency range: 824 - 960, 1920 - 2170, 2400 - 2500 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Dimensions (LxWxH): ca. 11.56 x 2.17 x 0.58 cm
• Cable type: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1.8 dB @ 1.8 GHz pro Meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 2 m
System requirements • Device with a free SMA connector
Package content
• Antenna
