Description This serial cable by Delock is suitable as an extension cable or connection cable for modem, printer, measuring instruments, converters, RS232 hubs, patch panels etc. The cable provides the possibility of connecting adjacent systems and devices.

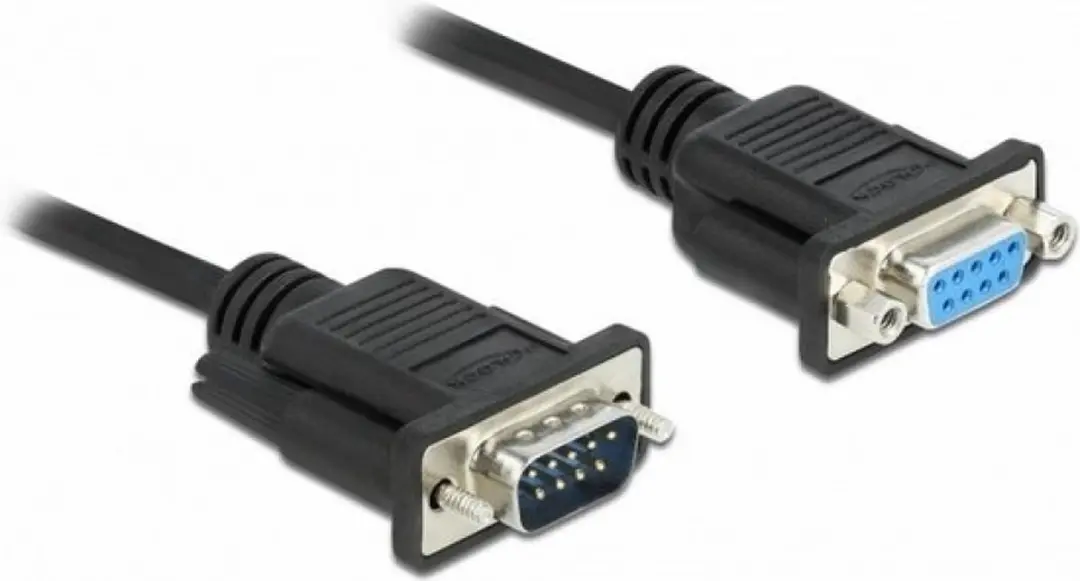

Mini D-Sub9 connector

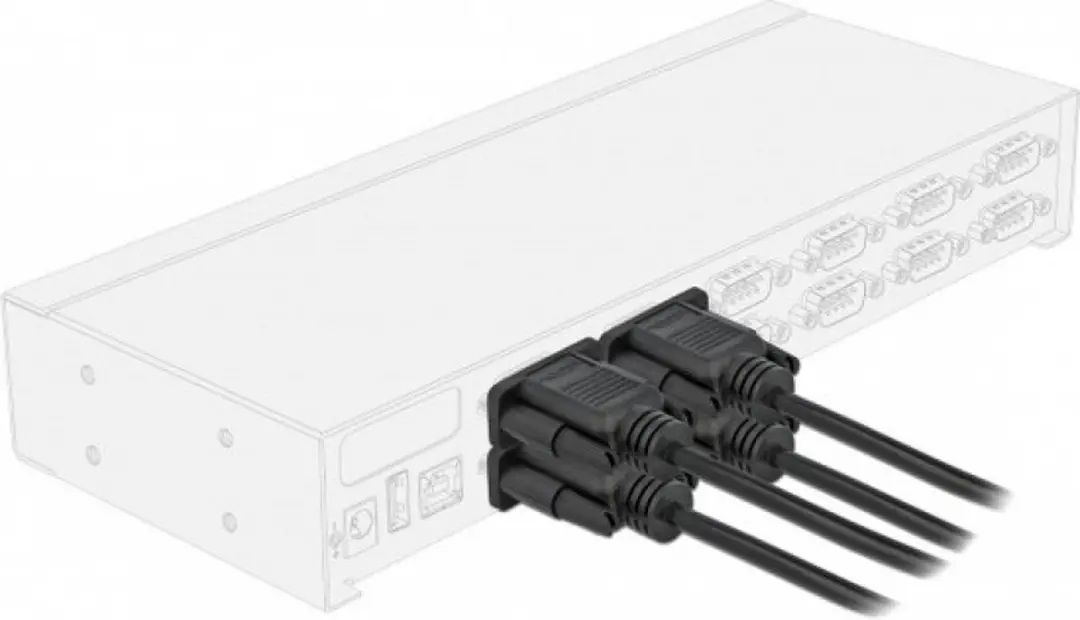

These cables fit on any RS-232 port, as the mini D-Sub9 connectors (44 x 33.3 x 15 mm) are small and compact. In this way, RS-232 connections can be used directly adjacent to each other.
Specification • Connectors:
1 x serial D-Sub9 male with screws >
1 x serial D-Sub9 female with screws
• Cable gauge: 28 AWG
• Pin assignment: 1:1
• Colour: black
• Insulator: PVC
• Screw type: #4-40 UNC
• Cable diameter: ca. 5 mm

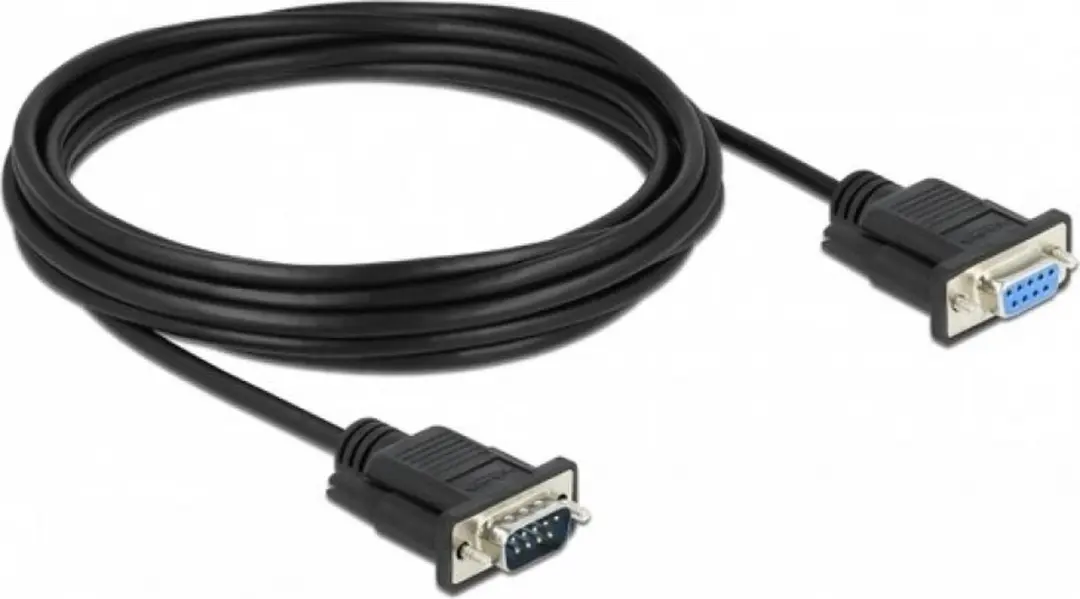

• Cable length incl. connectors: ca. 5 m
System requirements • A free D-Sub9 female
• A free D-Sub9 male port
Package content
• Cable
