RAM Mounts RAM-109HU Horizontale Zwenkarmsteun - Zwart

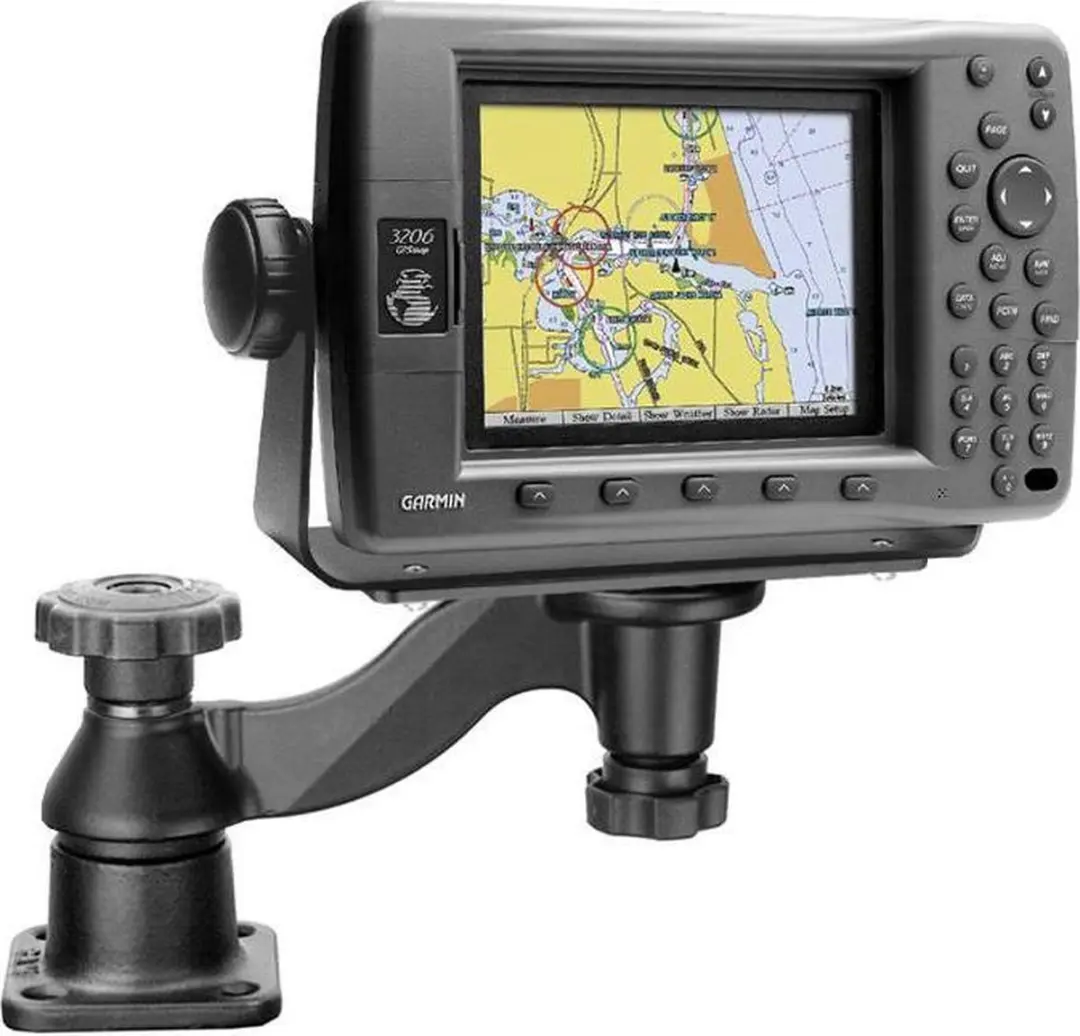

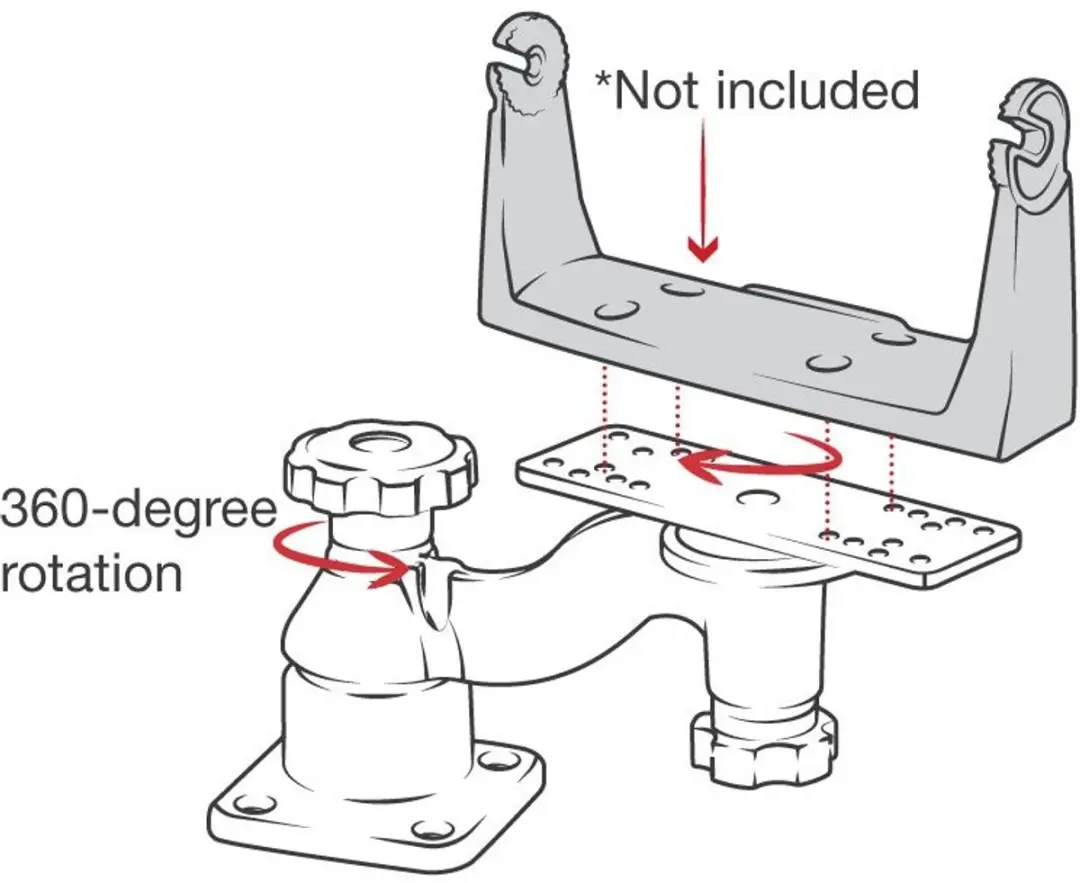

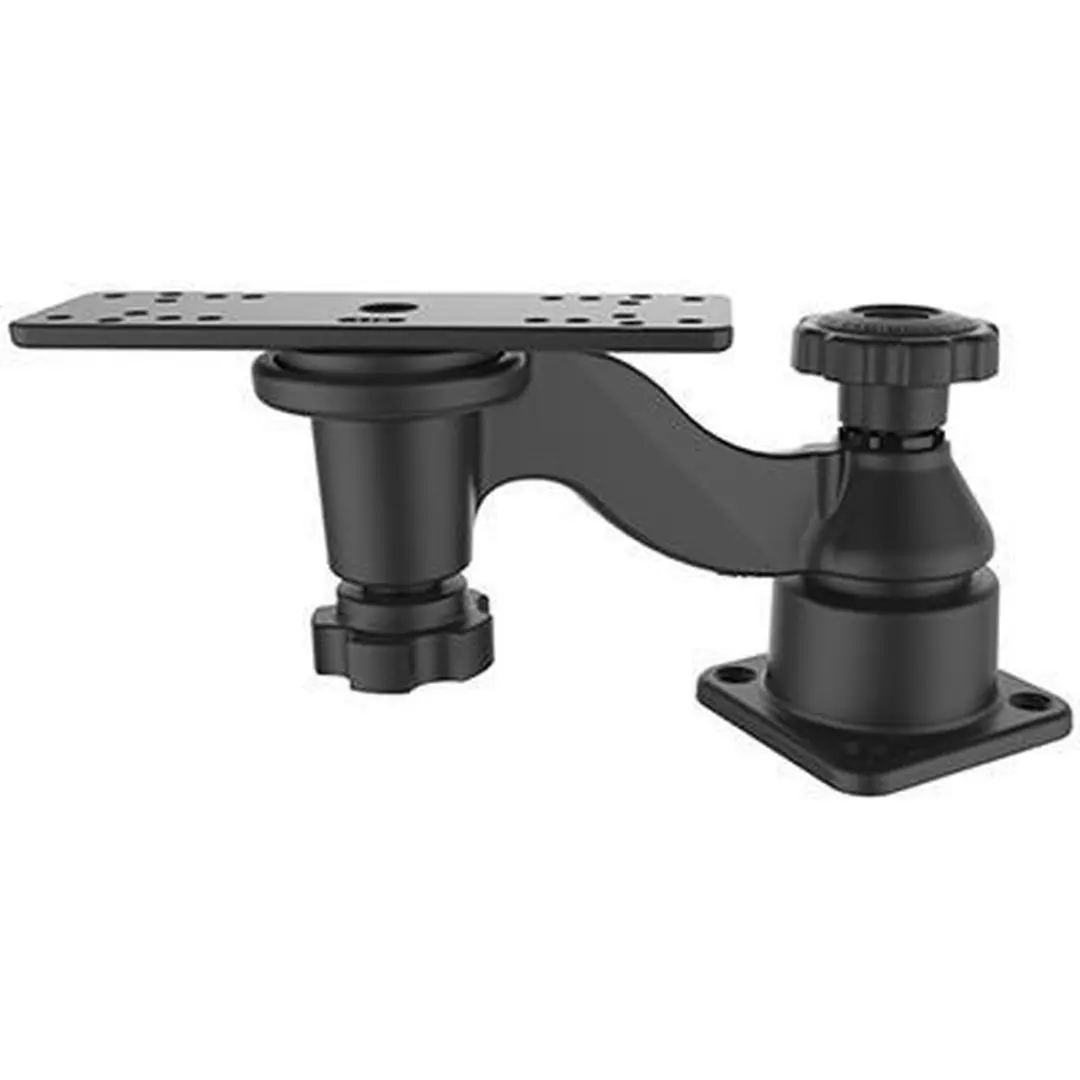

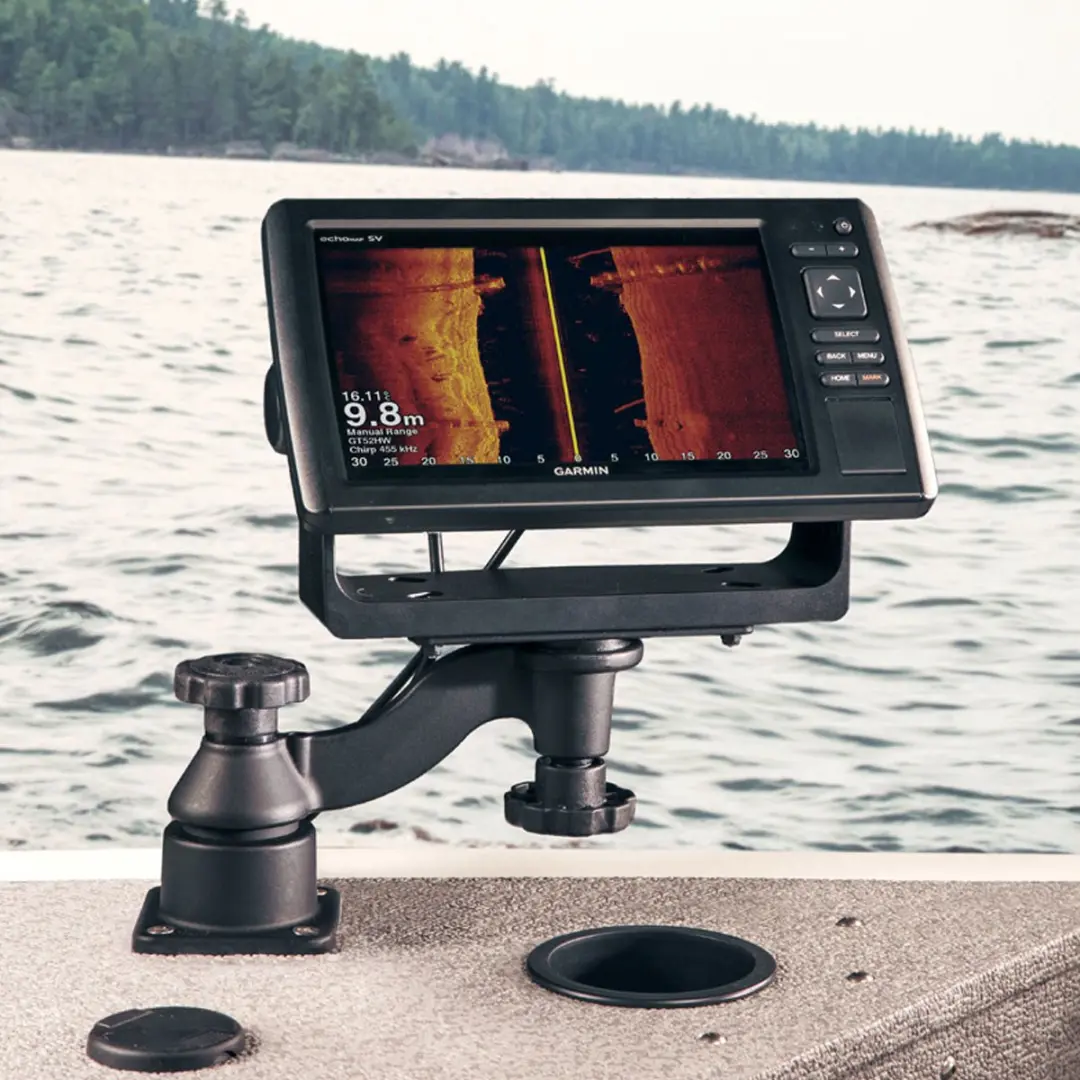

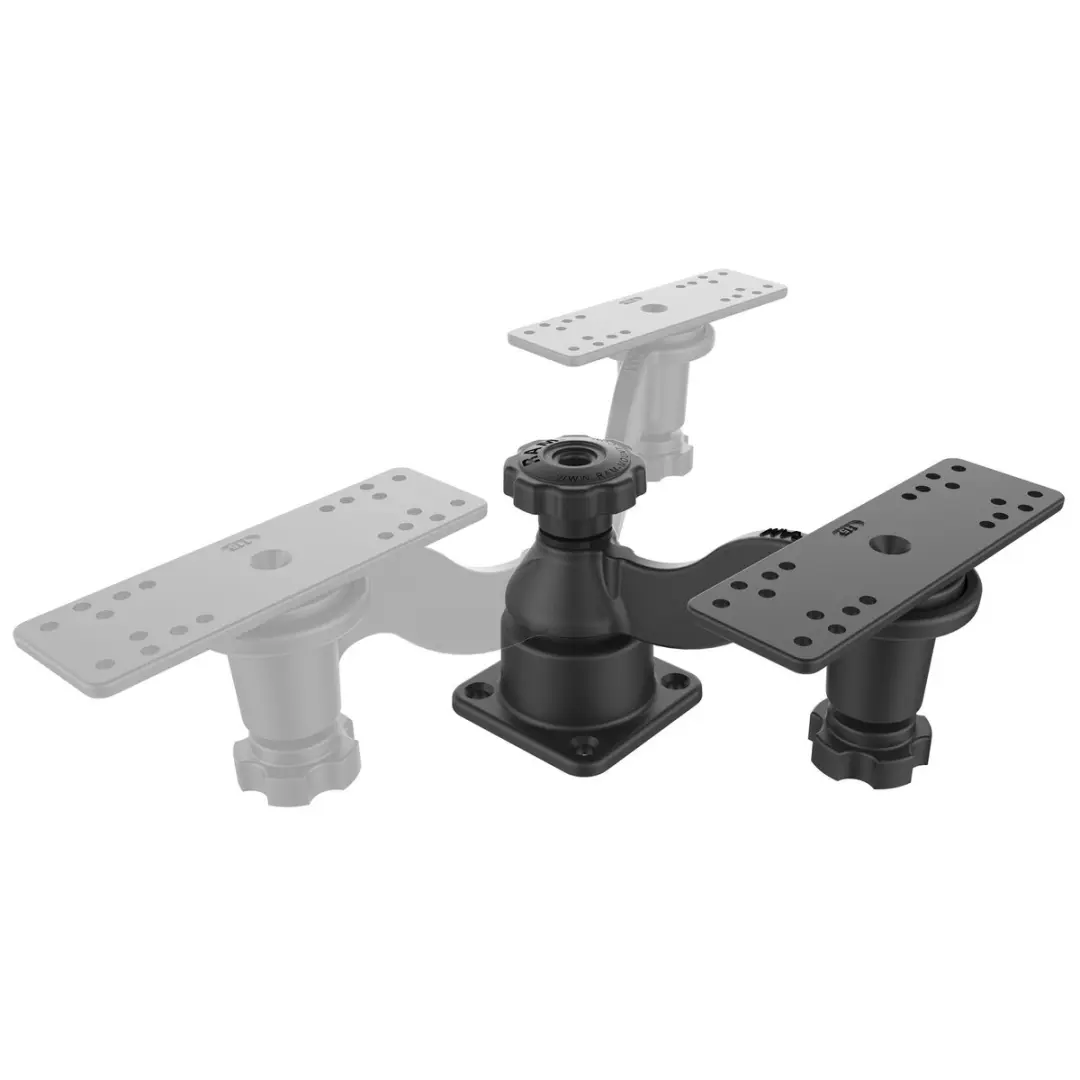

Product Description: The RAM single swing arm mount consists of a 6 long BENT swing arm mounted on a horizontal surface mounting base. At the device mounting end of the mount is a rectangular 6.25 x 2 plate. There are two pivoting points on the mount. One at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation. Dimensions: A. Center of knob to center of ball socket: 6 (15.2 cm) B. Overall length of swing arm assembly: 10.75 (27.3 cm) C. Overall height: 5.6 (14.2 cm) D. Height from base to top of knob: 4.91 (12.5 cm) Material: Powder Coated Marine Grade Aluminum Mount Components included BASE: RAM-111BTU ARM: RAM-109-1APU BASE: RAM-109H-B Montageplaat inclusief The RAM-111BT universal base has a short post connected at right angles to a flat 6.25 x 2 inch rectangular base. The base has many different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. The small post on the base is designed to connect to the RAM-109 series arms. Included on the end of the post is a tightening knob for use when installed on the compatible RAM-109 series arm. Compatible Makes & Models GARMIN FISHFINDER 320C GARMIN GPSMAP 180 GARMIN GPSMAP 182 GARMIN GPSMAP 182C GARMIN GPSMAP 185 SOUNDER GARMIN GPSMAP 188 SOUNDER GARMIN GPSMAP 188C SOUNDER GARMIN GPSMAP 192C GARMIN GPSMAP 198C SOUNDER GARMIN GPSMAP 2106 GARMIN GPSMAP 2206 GARMIN GPSMAP 230 GARMIN GPSMAP 232 GARMIN GPSMAP 235 SOUNDER GARMIN GPSMAP 238 SOUNDER GARMIN GPSMAP 3005C GARMIN GPSMAP 3006C GARMIN GPSMAP 3205 GARMIN GPSMAP 3206 LOWRANCE LCX-104C LOWRANCE LCX-110C LOWRANCE LCX-17M LOWRANCE LCX-19C LOWRANCE LCX-20C LOWRANCE LCX-25C LOWRANCE LCX-26C HD LOWRANCE LMS-332C HUMMINBIRD 947C 3D COMBO HUMMINBIRD 931C HUMMINBIRD 937C COMBO HUMMINBIRD 981C SI HUMMINBIRD 987C SI COMBO HUMMINBIRD MATRIX 97
