Aantal 2.5 inch bays
4
Aantal 3.5 inch bays
2
Aantal 5.25 inch bays
0
Aantal USB 2.0 poorten
0
Aantal USB 3.0 poorten (USB 3.1 Gen 1 Type A)
3
Aantal USB-C poorten
1
Aantal ventilatoren inbegrepen
3
Aanvullende functies

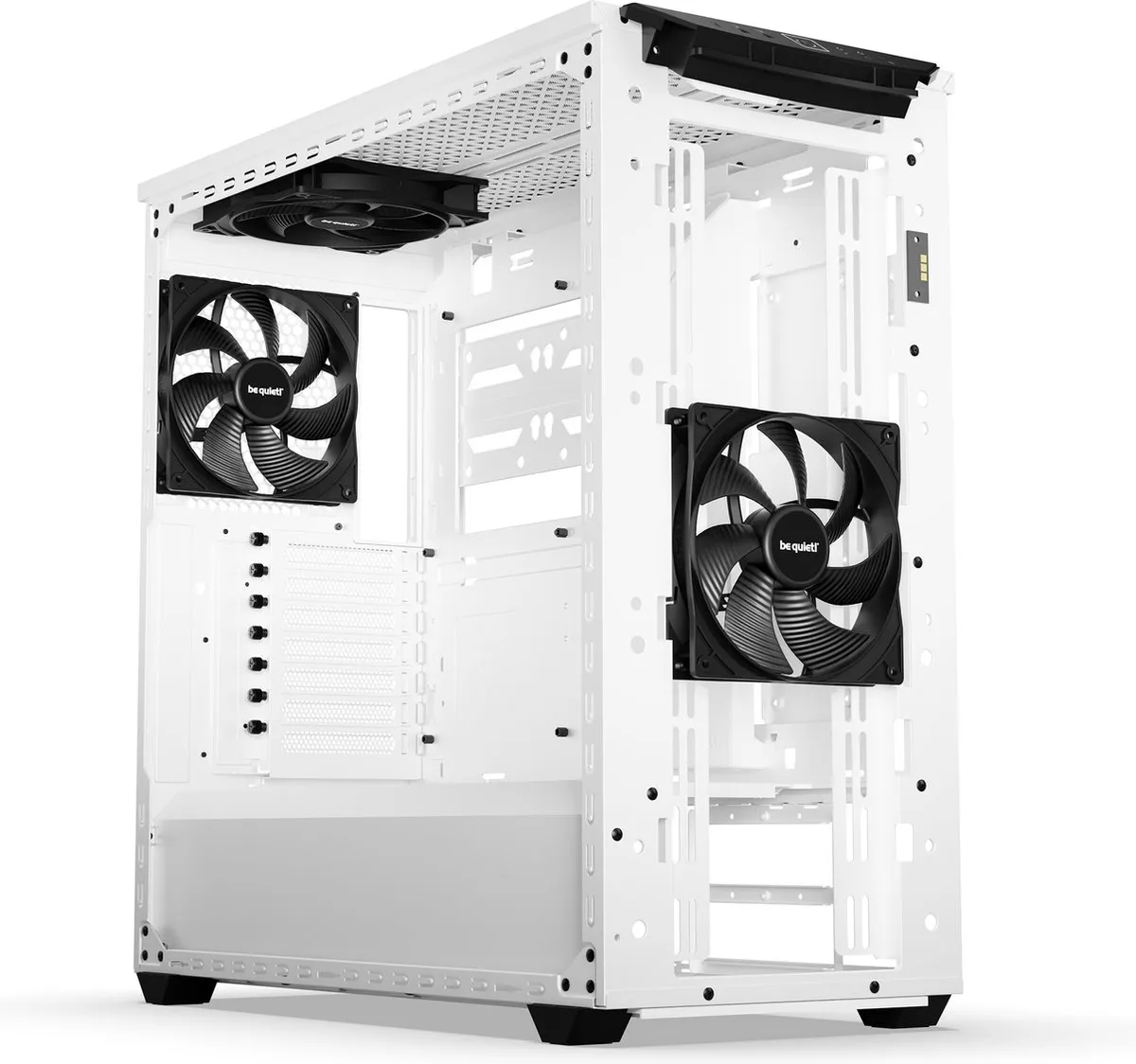

Pre-installed fans Fan at top 1x Pure Wings 3 140mm PWM Fan at front 1x Pure Wings 3 140mm PWM Fan at side - Fan at rear 1x Pure Wings 3 140mm PWM Fan at bottom - Dimensions (L x W x H), (mm) Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25 Fan speed at 100% PWM / 12V (rpm) 1200 Airflow at 100% PWM / 12V (CFM / m3/h) 57.4 / 97.5 Air Pressure at 100% PWM / 12V (mm H2O) 0.96 Noise level at 100% PWM / 12V (dB(A)) 21.9 Voltage range (V DC) 5 - 13.2 Input power (W) 3.6 Input current (A) 0.3 Connector 4-pin PWM Lifespan (h / 25°C) 80,000 Fan controller - Maximum fan installation Maximum fans 8 Top (mm) 3x 140 / 3x 120 Front (mm) 3x 140 / 3x 120 Side (mm) - Rear (mm) 1x 140 / 1x 120 Bottom (mm) 1x 140 / 1x 120 PSU shroud - Optional radiator installation Top (mm) 120 / 140 / 240 / 280 / 360 / 420 Front (mm) 120 / 140 / 240 / 280 / 360 / 420 Side (mm) - Rear (mm) 120 Bottom (mm) - PSU compatibility Maximum dimensions excl. bottom fan (mm) 305 Maximum dimensions incl. bottom fan (mm) 260 Graphics card HDD cage (in height of graphics card) installed (mm) 430 HDD cage (in height of graphics card) removed (mm) 430 Maximum PCIe slots with vertical graphics card (pcs.) 7 Drive bay capacity 5.25 bays (pcs.) - 3.5 slots (scope of delivery) 2 3.5 slots (max.) 4 2.5 slots (scope of delivery) 4 2.5 slots (max.) 8 Cooling Max.construction height of CPU cooler unit (mm) 180 Airflow channel Front / Top / Rear / Bottom Lighting LED illumination ✓ LEDs (pcs.) 40 LED type ARGB - 5V LEDs synchronizable with controller/motherboard ✓ I/O Panel USB 3.2 Gen. 2 Type C 1 USB 3.2 Type A 2 USB 2.0 - HD Audio I/O Mic + Audio Qi charger / Quick Charging Option - Insulation and damping Top panel insulation mats - Front panel insulation mats - Side panel insulation mats ✓ Anti-vibration decoupled HDD ✓ Anti-vibration decoupled fan ✓ Anti-vibration decoupled PSU ✓ Anti-vibration decoupled motherboard-tray - Removeable dust filters Top - Front 1 Side - Bottom 1 Material Top cover ABS Front panel ABS Side panel Steel Side panel window Tempered glass Stands ABS Safety certification Approvals CE, UKCA Environmental directives RoHS ✓ Reach ✓ WEEE ✓ Triman ✓ Scope of delivery Screw set (Drives/Motherboard) ✓ Additional standoffs (pcs.) - SSD bracket for PSU shroud - LED strips (pcs.) - Cable ties (pcs.) 6 (Velcro) / 4 (Velcro) Screw box - VGA holder - VGA holder for inverted layout - Mesh Front Panel - ODD Bracket - Fan / Radiator bracket for multi mounting panel - Service Warranty (Years) 3 International hotline / free of charge ✓ / DE, FR Logistics data and RRP Article number BGW62 EAN code 4260052190623 Dimensions, package (L x W x H), (mm) 575 x 319 x 628 Gross weight, package (kg) 13.2 Pieces per packaging unit 1
CE markering
Zichtbaar
Fabrieksgarantie termijn
2 jaar
Geluidsdempende materialen
Ja
Geschikt voor waterkoeling
Ja
Inclusief fancontroller
Nee
Inclusief voeding
Nee
Kabelmanagement
Ja
Kleur
Wit
MPN (Manufacturer Part Number)
BGW62
Materiaal
Staal
Maximum aantal fans achterzijde
1
Maximum aantal fans bovenzijde
3
Maximum aantal fans onderzijde
1
Maximum aantal fans voorzijde
3
Maximum diameter radiator
120 mm
Maximum hoogte CPU-koeler
180 cm
Maximum lengte videokaart
43 cm
Model

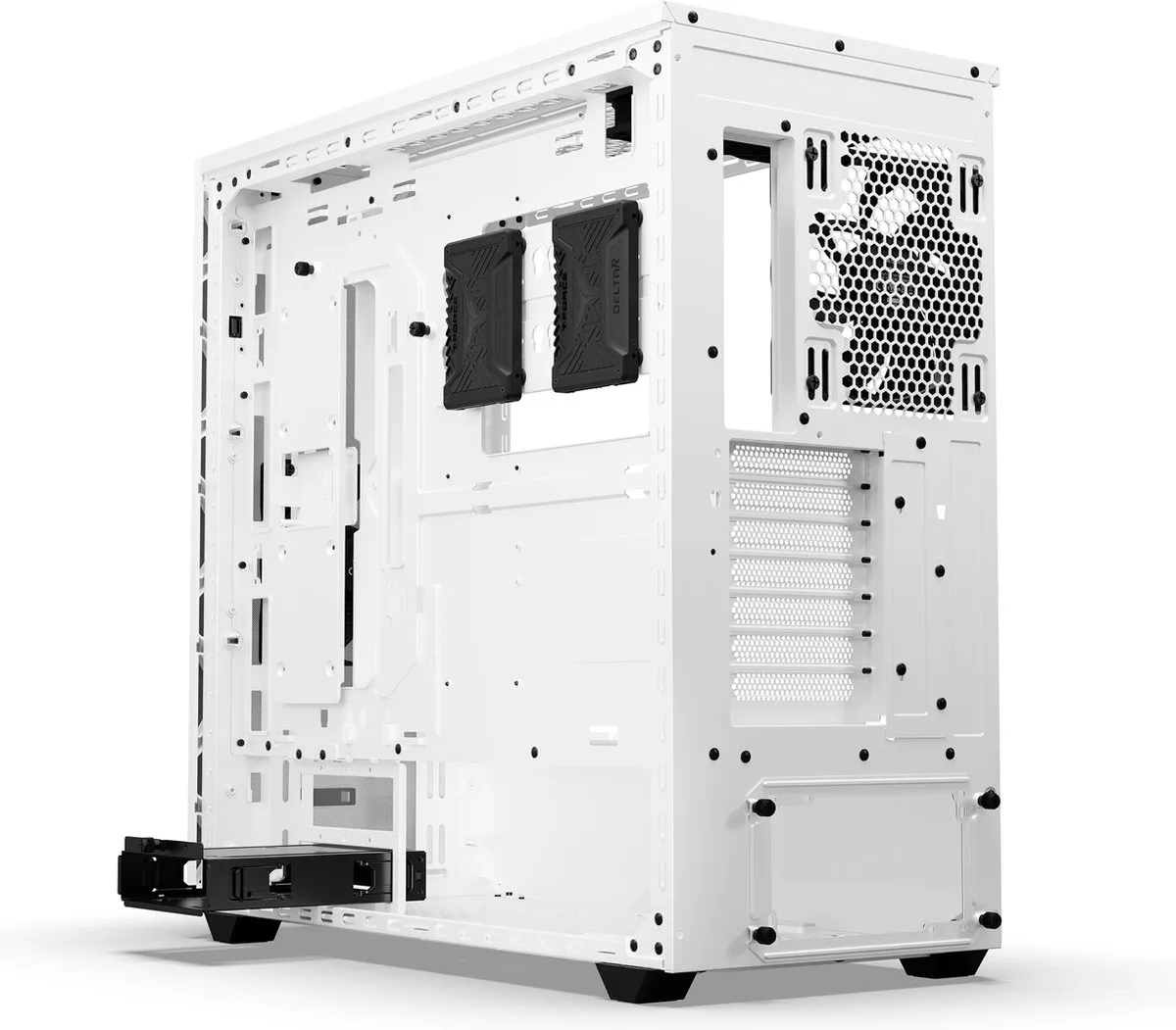

be quiet! Shadow Base 800 DX White Midi Tower Wit
Moederbord form factor
ATX
Plaats voeding
Onder
Reparatie type
Carry-in
Soort zijpaneel
Gehard glas
Stoffilter
Ja
Type LED verlichting
RGB verlichting
Type aansluiting
USB-C
Type bijvoegsel
Midi-Tower
Type extern geheugenslot
Geen extern geheugenslot
Verpakking breedte
319 mm
Verpakking hoogte
628 mm
Verpakking lengte
575 mm
Verpakkingsgewicht
13200 g
Voorzien van LED verlichting
Ja
