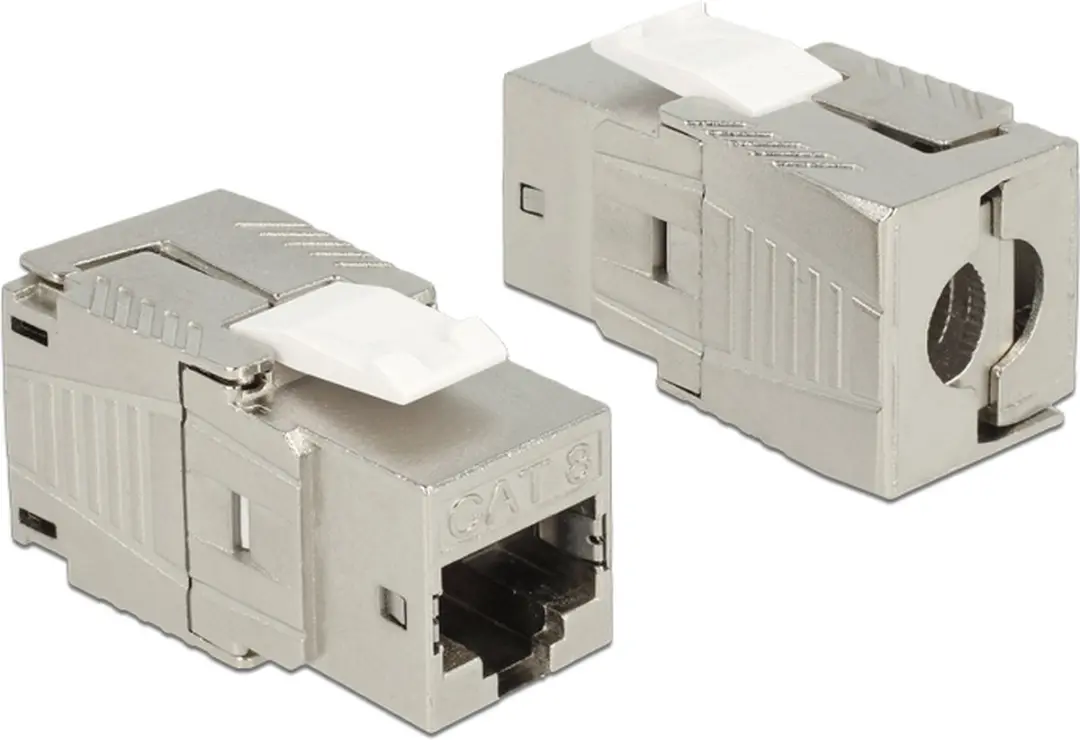

Description This module by Delock can be used to connect twisted pair cable to an RJ45 jack. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.
Specification • Connectors:
external: 1 x RJ45 jack (8P/8C) >
internal: LSA (toolfree)
• Cat.8.1 specification
• GHMT certified: 2 Connector Channel Link ISO/IEC TR 11801-9901 Ed.1.0 (2014-08)
• Supports PoE / PoE+
• Shielded (STP)
• Material: zinc die cast
• For solid or stranded wire up to 0.644 mm (22 - 24 AWG)
• For cable diameter from 5.5 - 9.0 mm
• For Keystone ports with 19.2 x 14.9 mm
• Dimensions (LxWxH): ca. 41.6 x 16.5 x 22.5 mm
System requirements • A free RJ45 plug
Package content
• Keystone module
• Cable manager
• Copper foil
• Zip-tie
