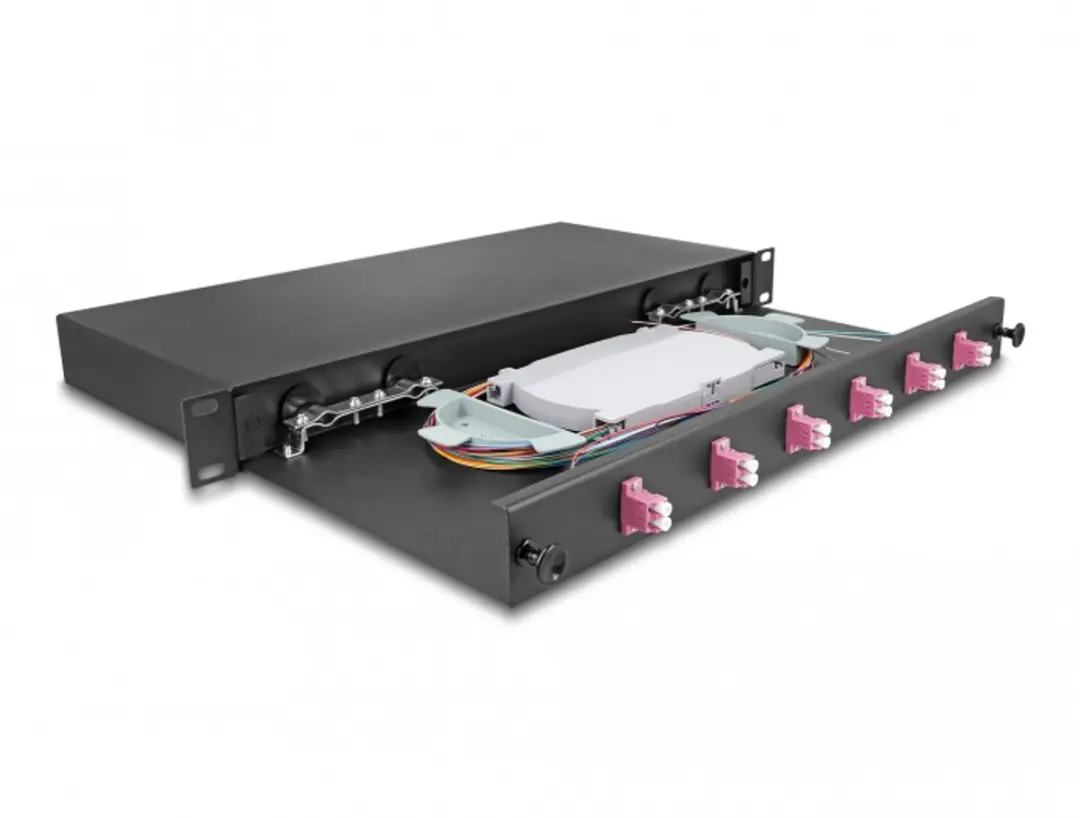

Description This pre-assembled optical fiber splice box by Delock can be mounted in a 19″ rack and is ideal for quickly and securely setting up the fiber optic network in buildings.
Complete assembled
The optical fiber box is equipped with 6 LC Duplex couplers and fitted with 12 pigtails, which are already inserted in the splice cassette.
With drawer
The front panel can be pulled out, making it possible to work on both sides of the couplers without removing the cover.
Note
The pigtails are not ready for splicing.
Specification • For mounting in 19″ racks, 1U
• Splice box with 6 x LC Duplex couplers
• Extendable tray
• With splice cassette
• Fiber pigtails are coloured in accordance with TIA/EIA-598
• OM4 pigtails
• Fibre: 50/125 µm
• Cable jacket material: LSOH
• Cable length: ca. 1.5 m
• Housing colour: black
• Housing material: metal
• Dimensions (LxWxH): ca. 482 x 220 x 44 mm
Package content • 19″ optical fiber splice box
• 4 x screw
• 4 x caged nut
• 4 x washer
