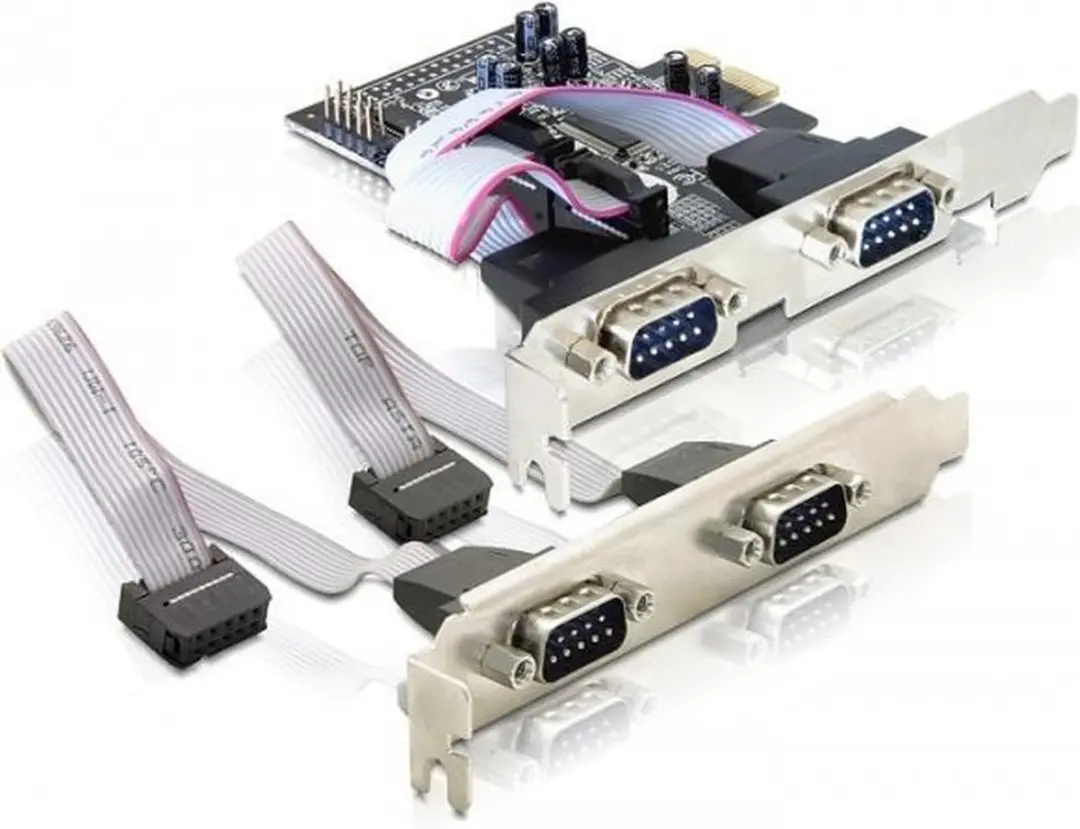

Description The PCI Express card by Delock expands a PC by four external serial ports. Different devices such as scanner, printer, mouse etc. can be connected to this card. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.
Specification • Connectors:
external:
2 x serial RS-232 DB9 male
2 x serial RS-232 DB9 male (separate rear bracket)
internal:
1 x PCI Express x1, V1.1
• Chipset: Moschip MCS9904
• Data transfer rate up to 230.4 Kbps
• FIFO: 256 byte
• Compatible with 16C550 UART
System requirements • Windows Server 2003/Server 2003-64
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot and one rear slot
Package content
• PCI Express card
• Slot bracket
• 4 x low profile bracket
• Driver CD
• User manual
