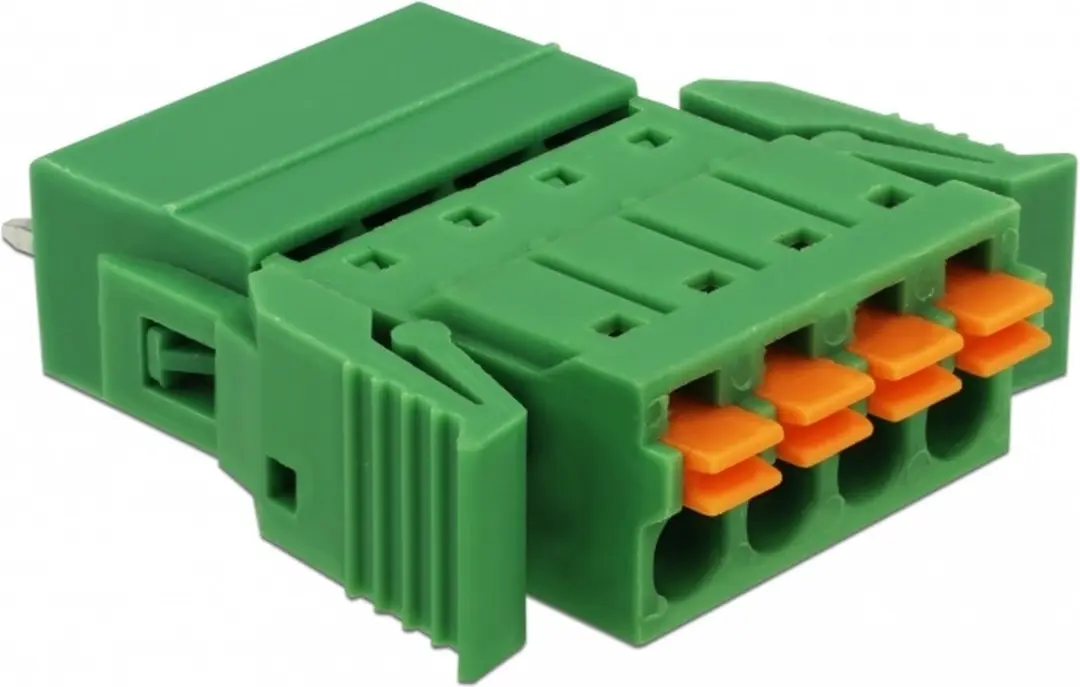

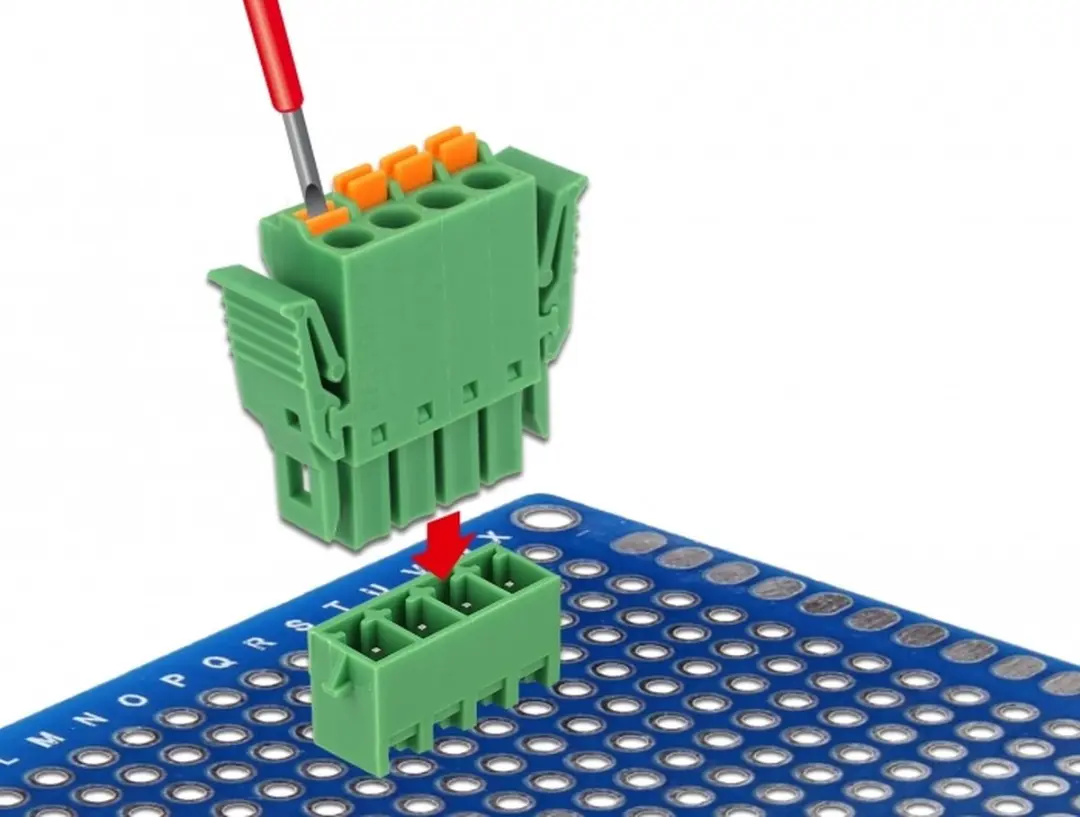

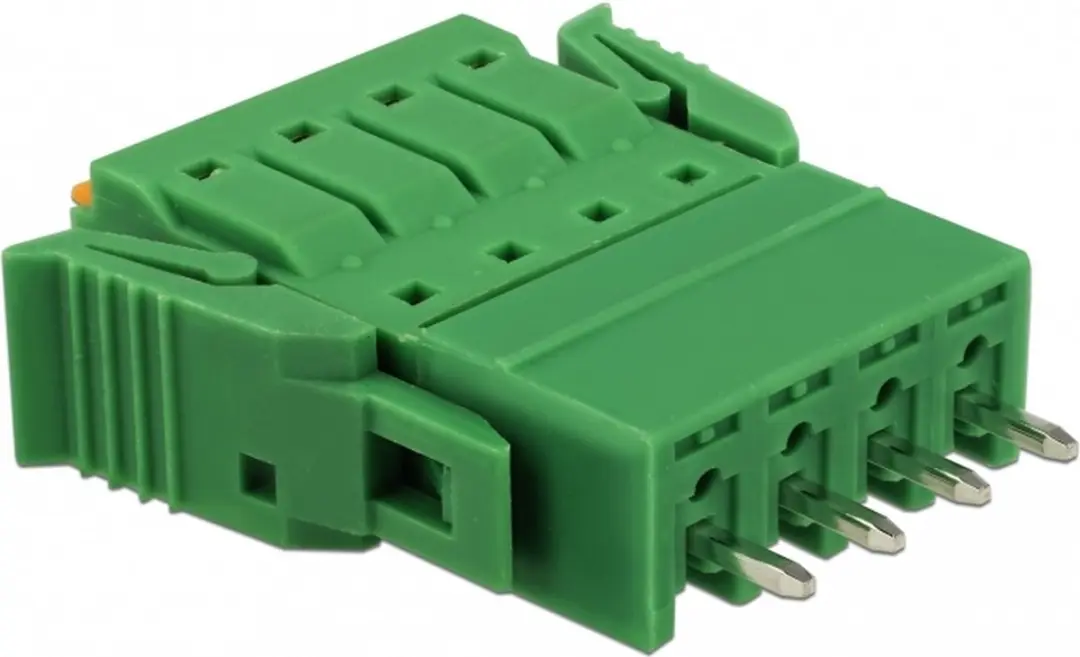

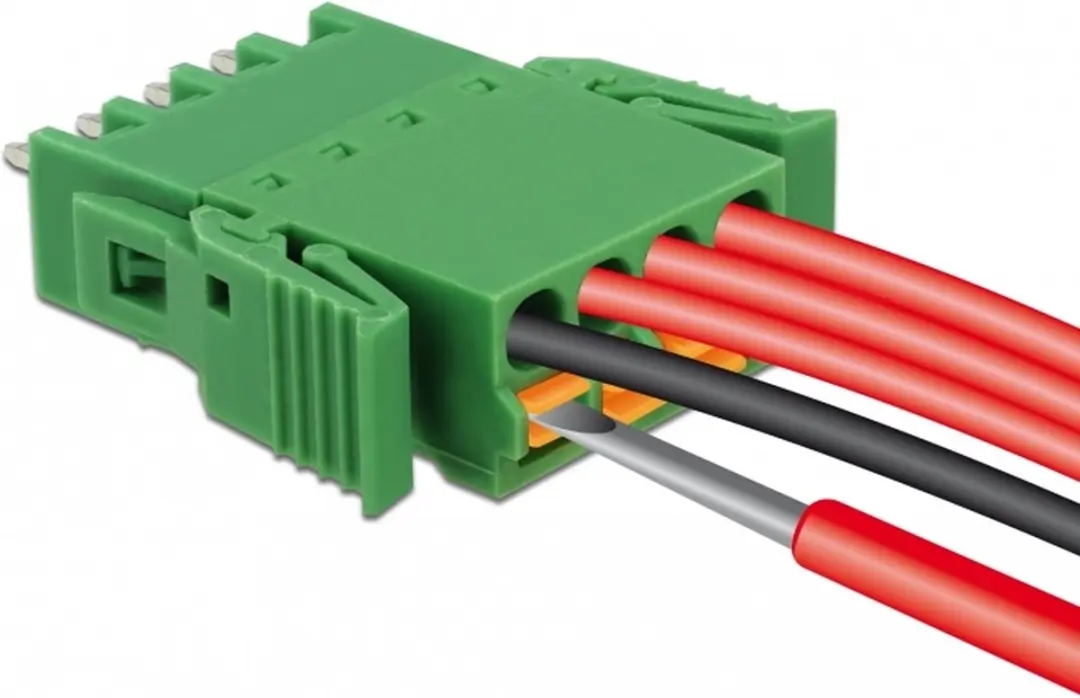

Description This terminal block set by Delock will be soldered on a PCB, to create a detachable connection between two components.
Specification • Connectors:
Terminal block:
1 x 4 pin terminal block male
1 x 4 pin terminal block with soldering pin
Connection terminal:
1 x 4 pin terminal block female
1 x 4 pin terminal block with locking function
• Pitch: 3.81 mm
• Environmental temperature: -40 °C ~ 105 °C
• Useable for a cable gauge range from 24 to 12 AWG
• Material: plastic
• Colour: green
• Dimensions (LxWxH): ca. 16.00 x 9.05 x 6.95 mm
Package content • Terminal block
• Connection terminal
