Model: Techly IDATA EXT-E70POED
Amplifier Extender HDMI Full HD 3D POE on Cat.6/6A/7 40m cable with EDID and IR
This HDMI Extender allows you to transmit HDTV signal over long distances using a Cat. 6 / 6A / 7 network cable. Thanks to the use of Network Cable you can reach up to 40m of transmission length with a video resolution of 1080p. Thanks to the Extended Display Identification Data (EDID) function via the switch, you can adjust the signal to the correct resolution and frequency and get the optimum and maximum quality from the HDMI signal. IDATA EXT-E70POED can be used canonically through the supplied power supplies or you can leverage the POE function to power the receiver. The product also features infrared IR synchronization technology, supports 3D signal and is HDCP 1.2a. Thanks to its versatility it can be used in any environment of both work and leisure as public places, studios, offices and conference rooms or just for home use.
Features
- Allows you to easily extend the HDTV signal up to 40m using a Cat. 6 / 6A / 7 network cable
- With EDID adjustment for optimal signal / frequency adjustment and support for IR technology
- With the LENGHT button for manual adjustment of the distance / signal ratio
Specifications
- Supported resolution: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz, 3D: 1080p @ 60Hz
- Maximum supported video resolution: 1080p
- Supports PCM, AC3, DTS audio
- Conforms to HDCP 1.2a
- Conforms to HDMI 1.4a
- Support 3D
- IR remote control: supports 20-60kHz
- Consumption: TX: <3W; RX: <3W
- Ambient temperature: 0 ? ~ 60 ?
- Power supply via 5V / 2A power supplies, receiver also powered by POE.
- Black Colour

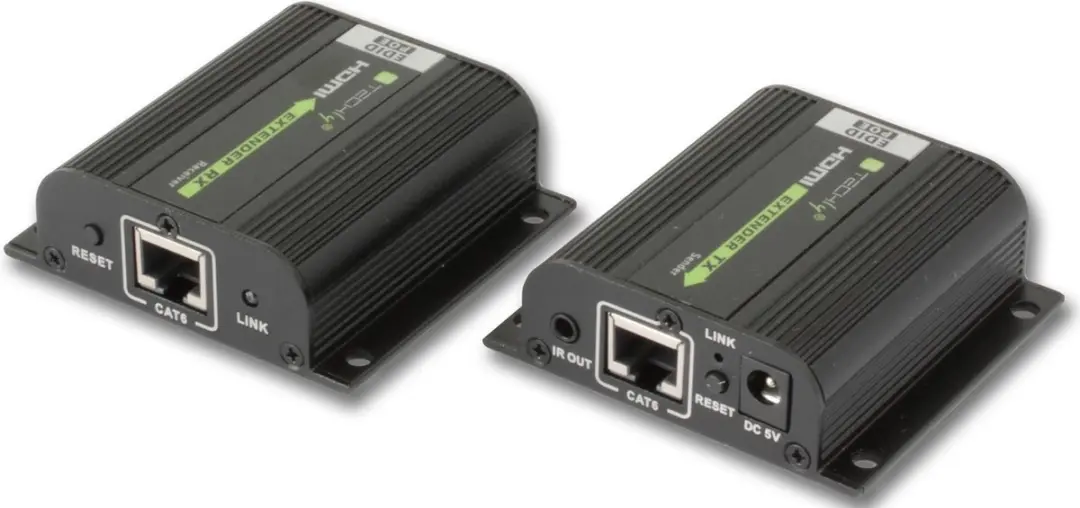

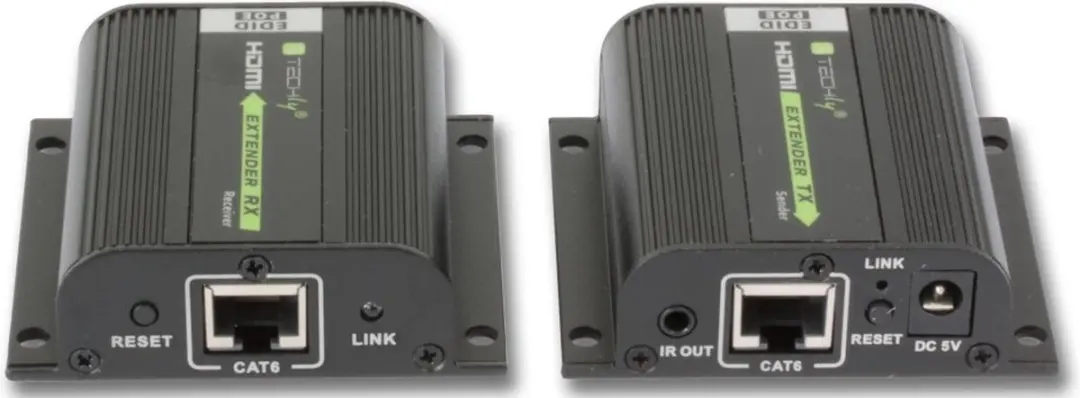

Transmitter Connections
- 5V DC power input
- HDMI signal input
- HDMI output through
- IR signal output for connection with IR blaster extension cable
- Reset
- RJ45 signal output
- LED Signal Indicator LED
Receiver Connections
- Reset
- RJ45 signal input
- LED indicator for connection status
- 5V DC power input
- HDMI signal output
- IR signal input
- LENGHT button for manual adjustment of distance / signal ratio
Size
- Width: 71.6 mm
- Depth: 66.9 mm
- Height: 22.6 mm
Certification
Package Content
- 1x Transmitter from HDMI to LAN
- 1x Receiver from LAN to HDMI
- 2x DC5V2A power supply
- 1x User Manual
- 1x Extension for IR blaster
- 1x Extender for IR Receiver
